- (Topic 2)
Which mode must be set for APs to communicate to a Wireless LAN Controller using the Control and Provisioning of Wireless Access Points (CAPWAP) protocol?

1. A. bridge
2. B. route
3. C. autonomous
4. D. lightweight

Correct Answer: D

- (Topic 4)
When a WPA2-PSK WLAN is configured in the Wireless LAN Controller, what is the minimum number of characters that is required in ASCII format?

1. A. 6
2. B. 8
3. C. 12
4. D. 18

Correct Answer: B

- (Topic 4)
What is a function of MAC address learning?

1. A. It is enabled by default on all VLANs and interfaces
2. B. It increases the potential for MAC address flooding.
3. C. It is disabled by default on all interfaces connected to trunks
4. D. lt increases security on the management VLAN

Correct Answer: A

- (Topic 4)

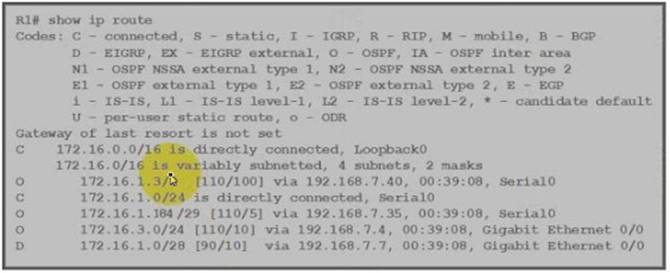

Refer to the exhibit.

Load-balanced traffic is coming in from the WAN destined to a host at 172.16.1.190. Which next-hop is used by the router to forward the request?

1. A. 192.168.7.4
2. B. 192.168.7.7
3. C. 192.168.7.35
4. D. 192.168.7.40

Correct Answer: D

- (Topic 4)
What are two purposes of HSRP? (Choose two.)

1. A. It groups two or more routers to operate as one virtual router.
2. B. It improves network availability by providing redundant gateways.
3. C. It passes configuration information to hosts in a TCP/IP network.
4. D. It helps hosts on the network to reach remote subnets without a default gateway.
5. E. It provides a mechanism for diskless clients to autoconfigure their IP parameters during boot.

Correct Answer: AB
