- (Exam Topic 3)
An administrator attempts to download the pack NBAR2 file using TFTP from the CPE router to another device over the Gi0/0 interface. The CPE is configured as below:

The transfer fails. Which action resolves the issue?

1. A. Change the WAN ACL to permit the UDP port 69 to allow TFTP
2. B. Make the permit udp any eq tftp any entry the last entry in the WAN ACL.
3. C. Change the WAN ACL to permit the entire UDP destination port range
4. D. Shorten the file name to the 8+3 naming convention.

Correct Answer: B

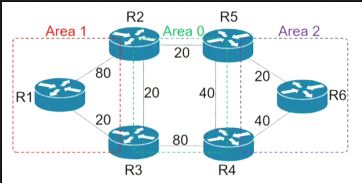

- (Exam Topic 3)
Refer to the exhibit.

R6 should reach R1 via R5>R2>R1. Which action resolves the issue?

1. A. Increase the cost to 61 between R2-R3-R1
2. B. Increase the cost to 61 between R2 and R3
3. C. Decrease the cost to 2 between R6-R5-R2
4. D. Decrease the cost to 41 between R2 and R1

Correct Answer: B

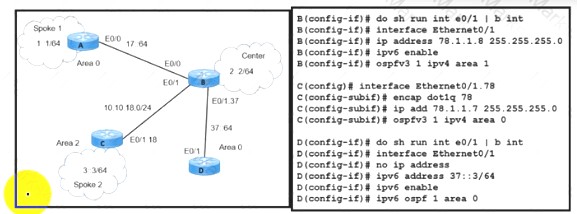

- (Exam Topic 3)

Refer to the exhibit. A network engineer receives a report that Spoke 1 users can perform bank transactions with the server located at the Center site, but Spoke 2 users cannot. Which action resolves the issue?

1. A. Configure the Spoke 2 users IP on the router B OSPF domain
2. B. Configure encapsulation dot1q 78 on the router C interface.
3. C. Configure IPv6 on the routers B and C interfaces
4. D. Configure OSPFv2 on the routers B and C interfaces

Correct Answer: C

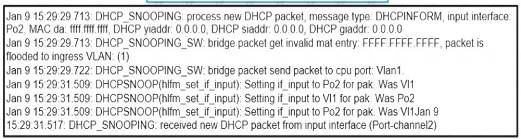

- (Exam Topic 2)
Refer to Exhibit.

A network administrator enables DHCP snooping on the Cisco Catalyst 3750-X switch and configures the uplink port (Port-channel2) as a trusted port. Clients are not receiving an IP address, but when DHCP snooping is disabled, clients start receiving IP addresses. Which global command resolves the issue?

1. A. No ip dhcp snooping information option
2. B. ip dhcp snooping
3. C. ip dhcp relay information trust portchannel2
4. D. ip dhcp snooping trust

Correct Answer: A

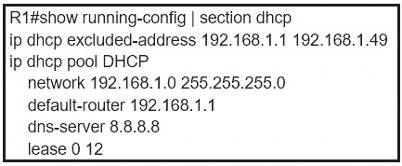

- (Exam Topic 1)
Refer to the exhibit.

Users report that IP addresses cannot be acquired from the DHCP server. The DHCP
server is configured as shown. About 300 total nonconcurrent users are using this DHCP server, but none of them are active for more than two hours per day. Which action fixes the issue within the current resources?

1. A. Modify the subnet mask to the network 192.168.1.0 255.255.254.0 command in the DHCP pool
2. B. Configure the DHCP lease time to a smaller value
3. C. Configure the DHCP lease time to a bigger value
4. D. Add the network 192.168.2.0 255.255.255.0 command to the DHCP pool

Correct Answer: B
