- (Exam Topic 2)

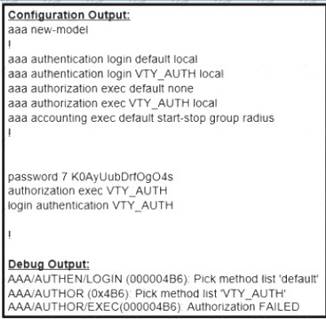

Refer to the exhibit.

Which action resolves the failed authentication attempt to the router?

1. A. Configure aaa authorization login command on line vty 0 4
2. B. Configure aaa authorization login command on line console 0
3. C. Configure aaa authorization console global command
4. D. Configure aaa authorization console command on line vty 0 4

Correct Answer: C
In the debug output, we see that the Authorization (not Authentication) failed so we need to correct the authorization. In order to enable authorization, we must use the global command “aaa authorization console” first.
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/security/a1/sec-a1-cr-book/sec-cr-a1.html

- (Exam Topic 3)

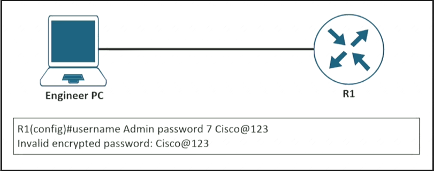

Refer to the exhibit.

An engineer is trying to add an encrypted user password that should not be visible in the router configuration. Which two configuration commands resolve the issue? (Choose two)

1. A. password encryption aes
2. B. username Admin password Cisco@maedeh motamedi
3. C. username Admin password 5 Cisco@maedeh motamedi
4. D. username Admin secret Cisco@maedeh motamedi
5. E. no service password-encryption
6. F. service password-encryption

Correct Answer: DF

- (Exam Topic 3)

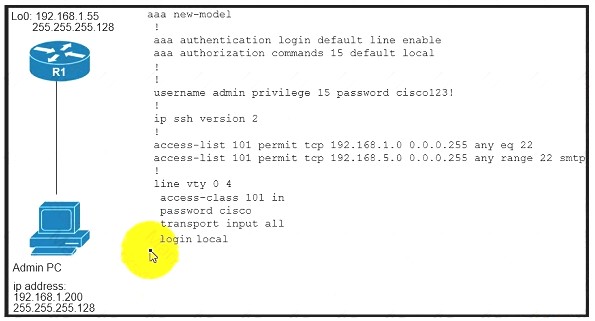

Refer to the exhibit. An engineer configured user login based on authentication database on the router, but no one can log into the router. Which configuration resolves the issue?

1. A. aaa authentication login default enable
2. B. aaa authorization network default local
3. C. aaa authentication login default local
4. D. aaa authorization exec default local

Correct Answer: C

- (Exam Topic 3)
An engineer notices that R1 does not hold enough log messages to Identity the root cause during troubleshooting Which command resolves this issue?

1. A. #logging buffered 4096 critical
2. B. (config)#logging buffered 16000 informational
3. C. #logging buffered 16000 critical
4. D. (config)#logging buffered 4096 informational

Correct Answer: B

- (Exam Topic 3)

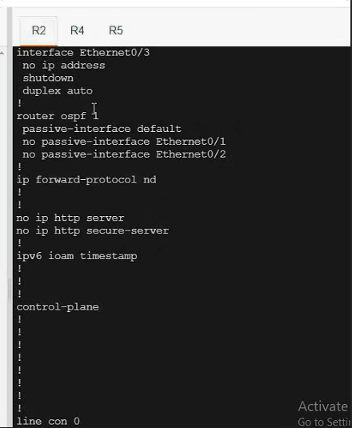

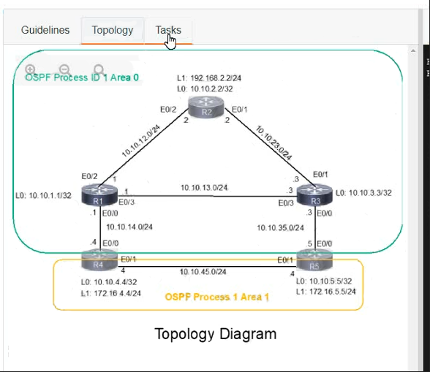

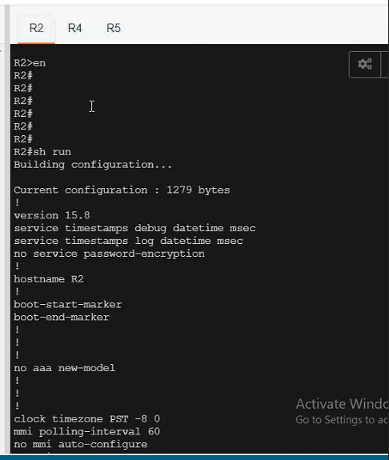

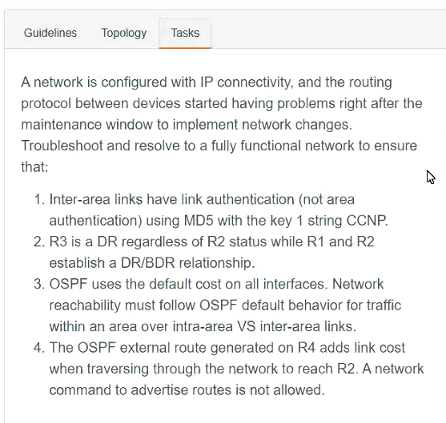

A network is configured with IP connectivity, and the routing protocol between devices started having problems right after the maintenance window to implement network changes. Troubleshoot and resolve to a fully functional network to ensure that:

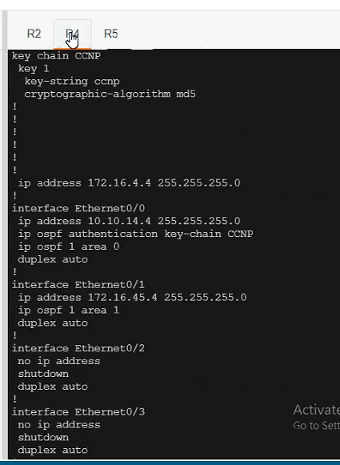

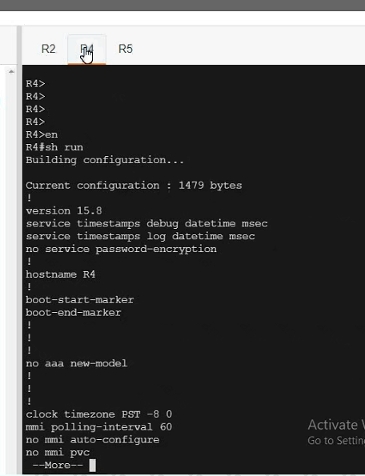

R4

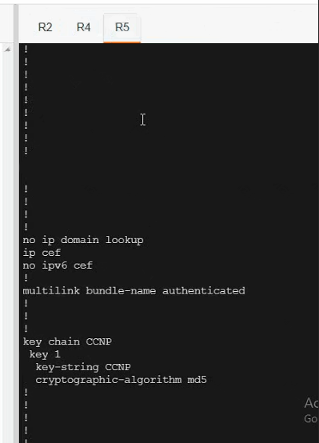

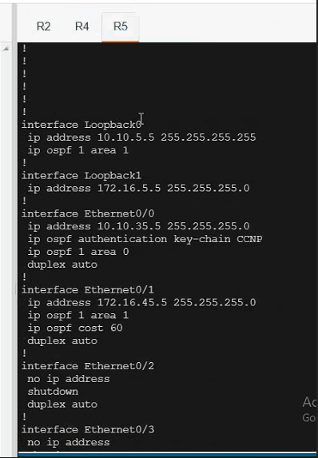

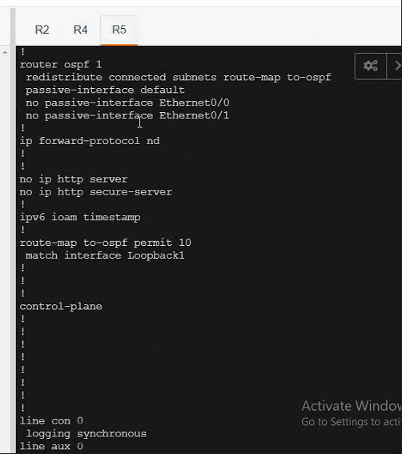

R5




Solution:

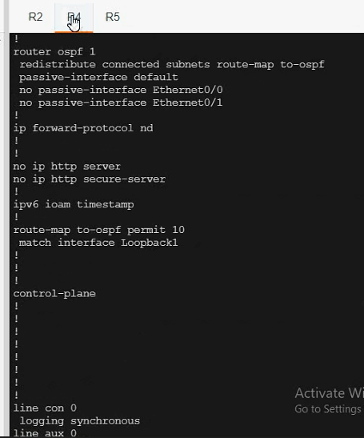

R4
Int range et0/0 – 1
Ip ospf authentication message-digest
Ip ospf message-digest-key 1 md5 CCNP
Router ospf 1
Redistribute connected subnets route-map to-ospf metric-type 1 Copy run start
R5
Int range et0/0 – 1
Ip ospf authentication message-digest
Ip ospf message-digest-key 1 md5 CCNP Interface eth 0/1

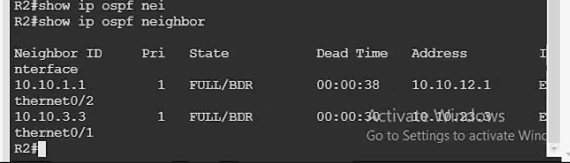

Ip ospf cost 10 Copy run start VERIFICATION:Graphical user interface, text, application Description automatically generated


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A
