Refer to the exhibit

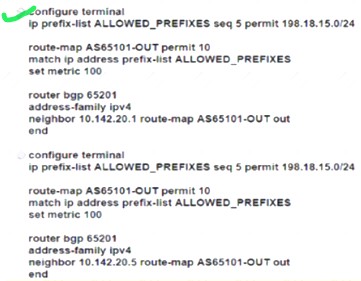

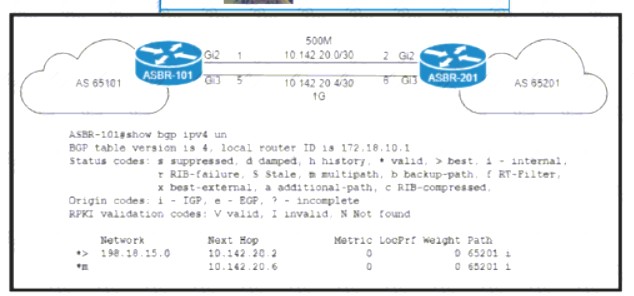

an engineer working for a private telecommunication company with an employee Id: 4065:96:080 upgrades the WAN link between routers ASBR-101 and ASBR-201 to 1Gb by Installing a new physical connection between the Gi3 Interfaces. Which BGP attribute must the engineer configure on ASBR-201 so that the existing WAN link on Gi2 Is maintained as a backup?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

Refer to the exhibit.

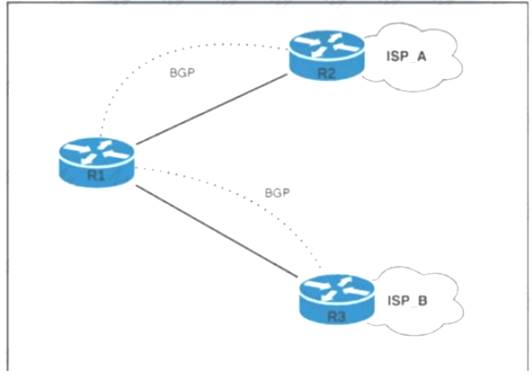

R1 has two upstream Tier 1 service providers. BGP is in use as the exterior routing protocol, and ISP_A and ISP_B are sending the full BGP table. A network engineer must assign
local-preference 70 to all routes with multiple exit discriminator 30. Which configuration must the network
engineer apply?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

Refer to the exhibit.

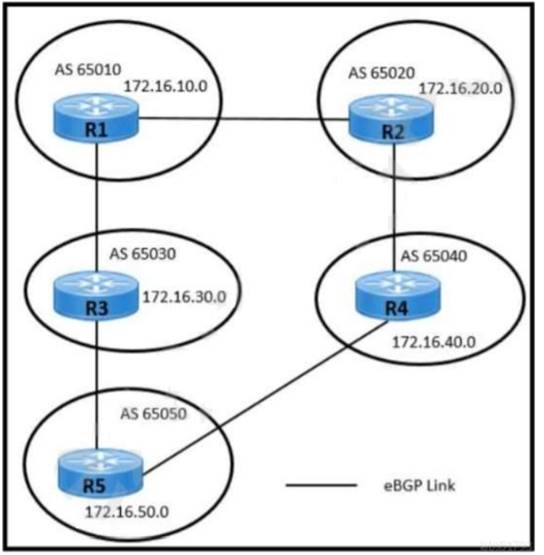

Users in AS 65010 are connected with the application server in AS 65050 with these requirements:
AS 65010 users are experiencing latency and congestion to connect with application server 172.16.50.10. AS 65030 must be restricted to become Transient Autonomous System for traffic flow.
Links connected to AS 65020 and AS 65040 are underutilized and must be used efficiently for traffic. Which two configurations must be implemented to meet these requirements? (Choose two.)

1. A. Apply the AS-Path route-map policy for traffic received from R3.
2. B. Configure the route map to prepend the AS-Path attribute for R5-R3 BGP peering.
3. C. Apply the MED route-map policy for traffic received from R4.
4. D. Configure a higher Local preference for R5-R4 BGP peering.
5. E. Configure the route map to set the MED 50 attribute for R5-R4 BGP peering.

Correct Answer: AC

Which statement about TLS is accurate when using RESTCONF to write configurations on network devices'?

1. A. It requires certificates for authentication.
2. B. It is provided using NGINX acting as a proxy web server
3. C. It is used for HTTP and HTTPS requests.
4. D. It is not supported on Cisco devices

Correct Answer: A

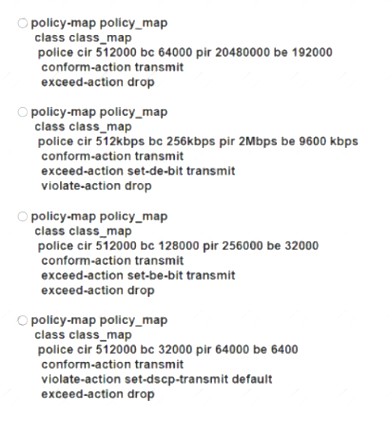

A customer site is being connected to a Frame Relay network via a T1 link. The customer has a contract for 512 kbps service with a Tc value of 125 ms. Under peak line conditions, customer traffic can reach four times the contracted speed. Which QoS configuration must the service provider implement to limit the customer to the contracted values?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A
