A network engineer has configured TE tunnels in the MPLS provider core. Which two steps ensure traffic traverse? (Choose two.)

1. A. Static routes is the only option for directing traffic into a tunnel.
2. B. ECMP between tunnels allows RSVP to function correctly.
3. C. Forwarding adjacency features allows a tunnel to be Installed in the IGP table as a link.
4. D. The IGP metric of a tunnel is configured to prefer a certain path
5. E. A tunnel weight is configured in SPF database the same way as a native link.

Correct Answer: CD

A network engineer is implementing BFD configuration changes on a customer's equipment. How is the bfd interval configuration on the interface disconnected?

1. A. The status of the interface changes.
2. B. The IPv4 or IPv6 address configuration on the interface changes.
3. C. It is automatically disconnected when the BFD-configured subinterface is removed.
4. D. It is automatically disconnected when the BFD main interface is removed.

Correct Answer: D

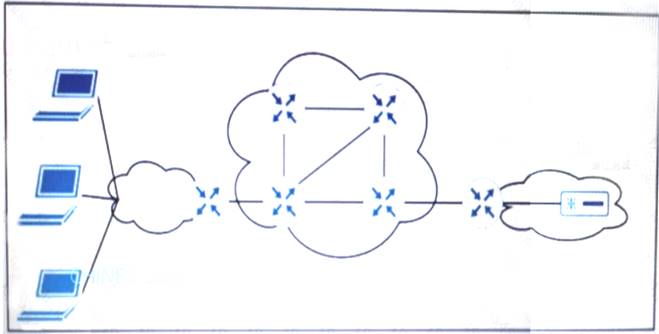

Refer to the exhibit.

ISP A provides VPLS services and DDoS protection to Company XYZ to connect their branches across the North America and Europe regions. The uplink from the data center to the ISP is Mbps. The company XYZ security team asked the ISP to redirect ICMP requests which are currently going to the web server to a new local security appliance which configuration must an ISPP engineer apply to router R2 to redirect the ICMP traffic?

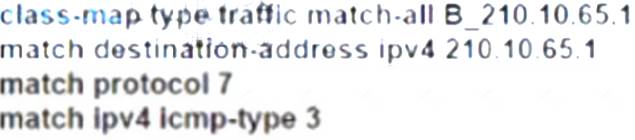

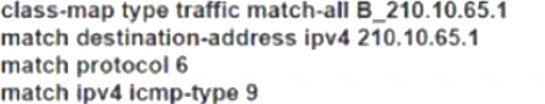

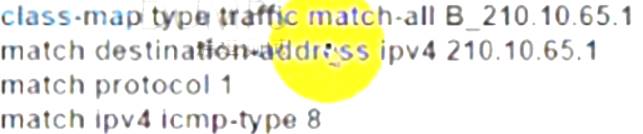

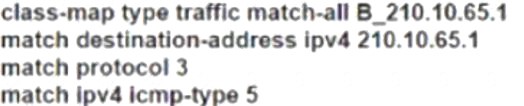

A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D

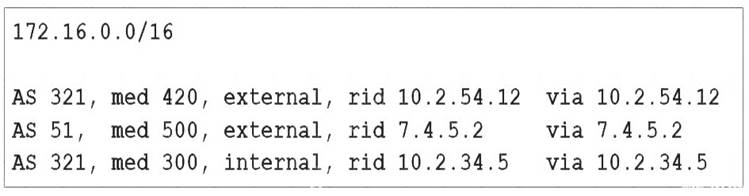

Refer to the exhibit.

Tier 2 ISP A on AS 653 is connected to two Tier 1 ISPs on AS 321 and AS 51 respectively. The network architect at ISP A is planning traffic flow inside the network to provide predictable network services. Cisco Express Forwarding is disabled on the edge router. How should the architect implement BGP to direct all traffic via the Tier 1 ISP with next-hop 7.4.5.2?

1. A. Implement the BGP routing protocol and run the bgp deterministic-med command.
2. B. Implement MP-BGP with a 4-byte AS number with the bgp best path compare-routerid command.
3. C. Implement the BGP routing protocol and the maximum-paths 2 configuration.
4. D. Implement BGP route-reflector functionality with the bgp always-compare-med configuration.

Correct Answer: A

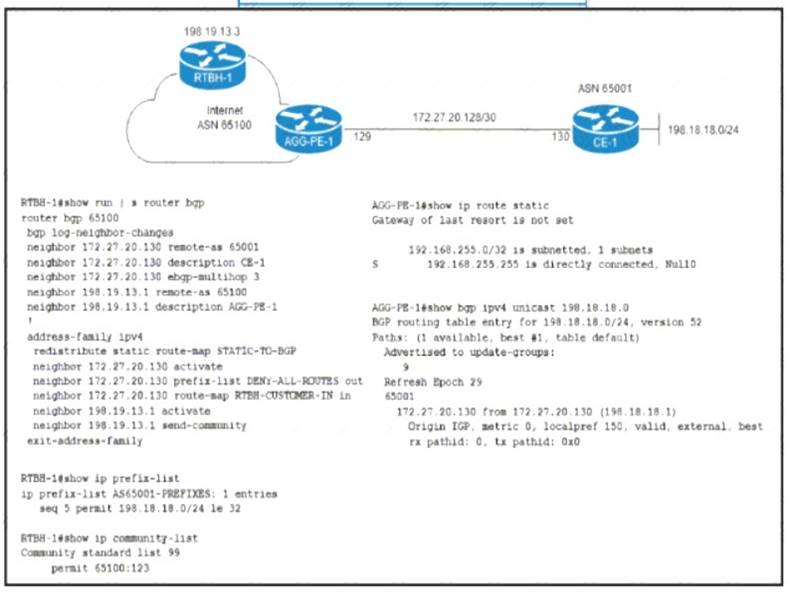

Refer to the exhibit.

ISP ASN 65100 provides Internet services to router CE-1 and receives customer prefix 198.18.18.0/24 via eBGP. An administrator for the ISP is now provisioning RTBH services to provide
on-demand data-plane security for the customer’s IP space. Which route-map configuration must the administrator apply to router RTBH-1 to complete the implementation of RTBH services to CE-1?

1. A. route-map RTBH-CUSTOMER-IN permit 10 description AS65001match ip address prefix-list AS65001-PREFIXESmatch community 99set local-preference 200set community no-export additive set ip next-hop 192.168.255.255route-map RTBH-CUSTOMER-IN deny 65535 description DEFAULT DENY
2. B. route-map RTBH-CUSTOMER-IN permit 10 description AS65001match ip address prefix-list AS65001-PREFIXES match community 99set local-preference 200set community local-as additive set ip next-hop 192.168.255.255route-map RTBH-CUSTOMER-IN deny 65535 description DEFAULT DENY
3. C. route-map RTBH-CUSTOMER-IN permit 10 description AS65001match ip address prefixlist AS65001-PREFIXES match community 99set local-preference 200set community no-advertise additive set ip next-hop local-addressroute-map RTBH-CUSTOMER-IN deny 65535 description DEFAULT DENY
4. D. route-map RTBH-CUSTOMER-IN permit 10 description AS65001match ip address prefix-list AS65001-PREFIXES match community 99set local-preference 200set community no-advertise additive set ip next-hop 192.168.255.255route-map RTBH-CUSTOMER-IN deny 65535 description DEFAULT DENY

Correct Answer: A
