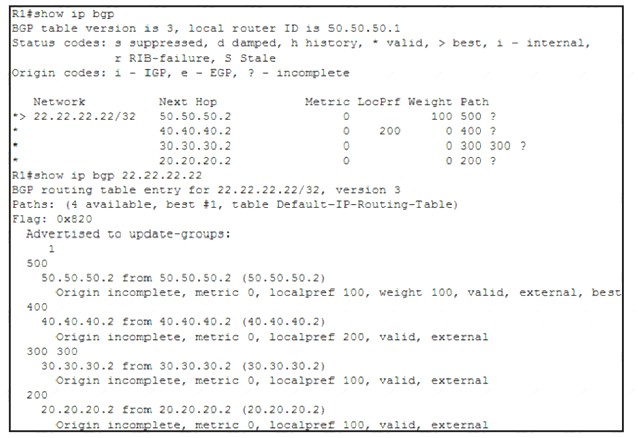

Refer to the exhibit.

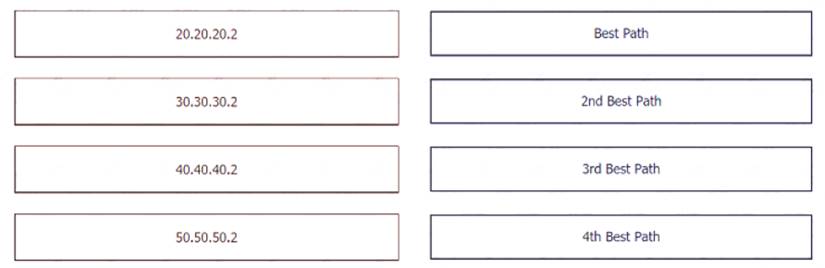

An engineer wants to determine which paths are best, second best, third best, and fourth best. Drag and drop the peer addresses on the left to the corresponding BGP best-path selection order on the right.

Solution:
Best – 50.50.50.2
2nd Best – 40.40.40.2
3rd Best – 20.20.20.2
44th Best – 30.30.30.2

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

How does model-driven telemetry use YANG?

1. A. to reset network devices that malfunction
2. B. to set informs and traps on clients to report back to a centralized server
3. C. to subscribe to data that is streamed from a device
4. D. to poll network devices on a 30-minute interval

Correct Answer: C

A network engineer is deploying VPLS configuration between multiple PE routers so that customer's remote offices have end-to-end LAN connectivity. Which additional configuration should the engineer perform on the PE routers to enable the virtual switch instance?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: B
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_l2_vpns/configuration/xe-3s/mp-l2-vpns-xe-3s-book/mp

What causes multicast traffic to permanently stay on the shared tree and not switch to the source tree?

1. A. The SPT threshold is set to infinity.
2. B. The RP IP address is configured incorrectly.
3. C. The RP announcements are being filtered.
4. D. SSM range is being used.

Correct Answer: C

https://www.cisco.com/c/en/us/td/docs/ios/solutions_docs/ip_multicast/White_papers/mcst_ovr.html

What is a characteristic of MVPN?

1. A. It bypasses the use of MPLS in the service provider core and transmits packets using IP only.
2. B. It uses pseudowires to route unicast and broadcast traffic over either a service provider MPLS or IP core.
3. C. It allows VRF traffic to use the service provider MPLS VPN to route multicast traffic.
4. D. It creates GRE tunnels to route multicast traffic over a service provider IP core.

Correct Answer: C
