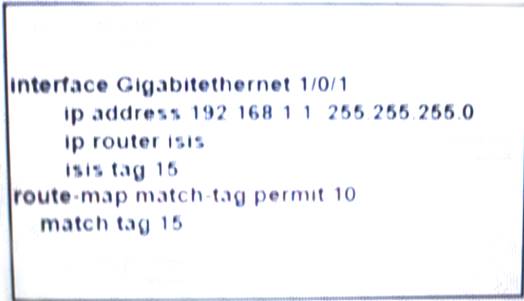

Refer to the exhibit.

A large organization is merging the network assets of a recently acquired competitor with one of its own satellite offices in the same geographic area. The newly acquired network is running different routing protocol than the company's primary network. As part of the merger a network engineer implemented this route map Which task must the engineer perform to complete the Implementation?

1. A. Attach the route map to an IS-IS network statement to advertise the routes learned on this interface to IS-IS
2. B. Enable metric style wide to allow the use of extended metrics from the protocols
3. C. Attach the route map to the redistribution command to manipulate the routes as they are shared
4. D. Configure an additional route map sequence to override the implicit deny at the end of the route map

Correct Answer: C

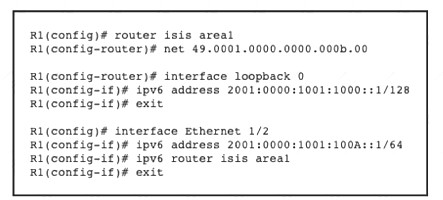

Refer to the exhibit.

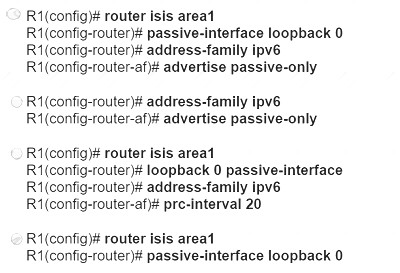

A network engineer with an employee id: 3812:12:993 has started to configure router R1 for IS-IS as shown. Which additional configuration must be applied to configure the IS-IS instance to advertise only network prefixes associated to passive interfaces?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A

Which OoS model allows hosts to report their QoS needs to the network?

1. A. DiffServ
2. B. CB-WFQ
3. C. IntServ
4. D. MQC

Correct Answer: A
Text Description automatically generated with medium confidence

How can a network administrator secure rest APIs?

1. A. They can allow read and write privileges to all users
2. B. They can ensure that user sessions are authenticated using TACACS+ only
3. C. They can have a general administrator login for multiple users to access that has command entries logged
4. D. They can authenticate user sessions and provide the appropriate privilege level

Correct Answer: D

Refer to the exhibit:

Which condition must be met by the OSPF peer of router R1 before the two devices can establish communication?

1. A. The interface on the OSPF peer must use the same key ID and key value as the configured interface
2. B. The interface on the OSPF peer may have a different key ID, but it must use the same key value as the configured interface
3. C. The OSPF peer must be configured as an OSPF stub router
4. D. The OSPF peer must use clear-text authentication

Correct Answer: A
