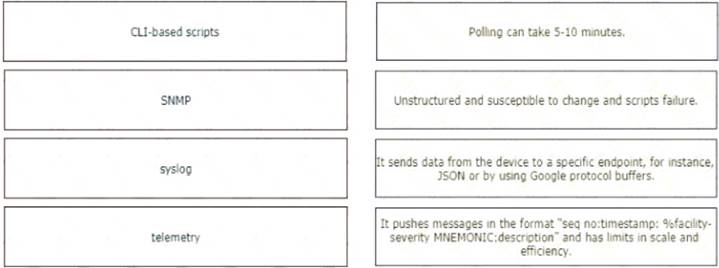

Drag and drop the mechanisms to collect data from a network from the left onto their characteristics on the right

Solution:
Table Description automatically generated with low confidence

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

What is a characteristic of EPLD updates on Cisco MDS 9000 Series Switches?

1. A. EPLD updates are installed only via the Cisco DCNM GUI
2. B. EPLD packages update hardware functionality on a device
3. C. EPLD bundles are released separately from a Cisco MDS NX-OS release
4. D. EPLD updates are nondisruptive to traffic flow

Correct Answer: B
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/6_2/release/notes/epld/epld_rn.htm

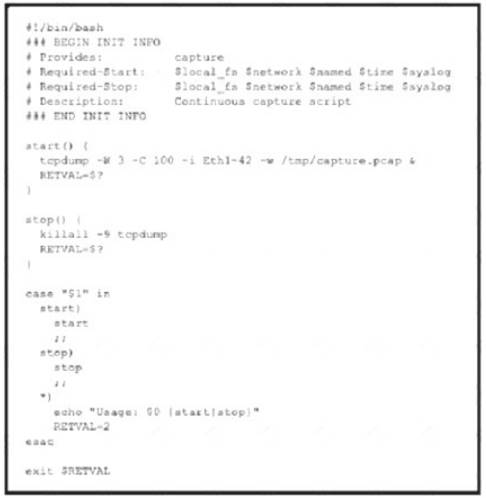

Refer to the exhibit

A network engineer must run a continuous capture on a port A script called ''capture'1 is created to start and stop the capture task Which command sequence makes the capture persistent after a reboot?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

A UCS B- Series server located in B5108 chassis 1 slot 1 is currently unavailable. The server needs to be associated with a specific service profile when it becomes available. Which associate service profile option should be selected to accomplish this goal?

1. A. server pool
2. B. server
3. C. custom server
4. D. restrict migration

Correct Answer: C

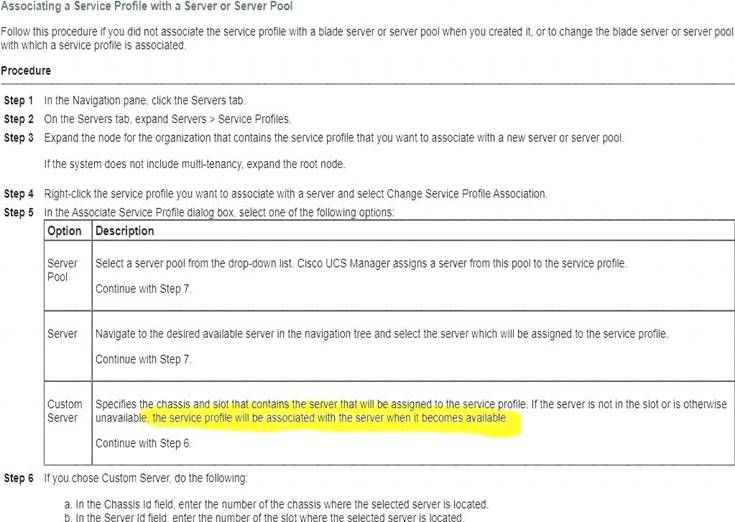

https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/gui/config/guide/141/ UCSM_GUI_Configuration_Guide_141_chapter28.html
Text, application Description automatically generated with medium confidence

Which two configuration settings are available in the in the cisco UCS flmware Auto sync server policy?

1. A. User Notification
2. B. User Acknowledge
3. C. No Action
4. D. Delayed Action
5. E. Immediate Action

Correct Answer: BC
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/firmware-mgmt/gui/2-2/b_GUI_Firmware_M Following are the values for the Firmware Auto Sync Server policy: • User Acknowledge—Firmware on the server is not synchronized until the administrator acknowledges the upgrade in the Pending Activities dialog box. • No Action—No firmware upgrade is initiated on the server.
