QUESTION 6

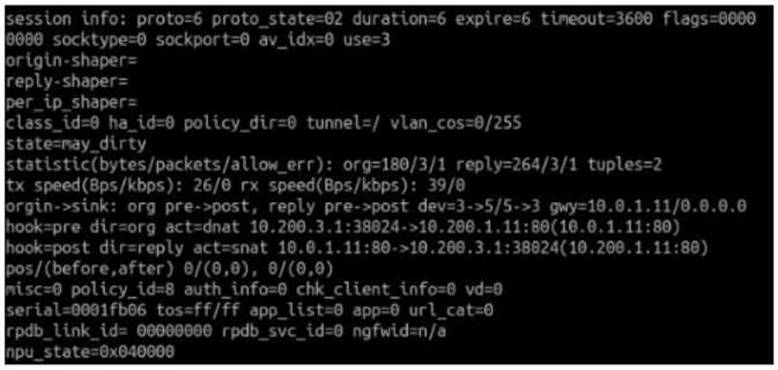

Refer to the exhibit.
NSE4_FGT-7.2 dumps exhibit
Which contains a session diagnostic output. Which statement is true about the session diagnostic output?

Correct Answer: A
Indicates TCP (proto=6) session in SYN_SENT state (proto=state=2) https://kb.fortinet.com/kb/viewContent.do?externalId=FD30042

QUESTION 7

A network administrator wants to set up redundant IPsec VPN tunnels on FortiGate by using two IPsec VPN tunnels and static routes.
* All traffic must be routed through the primary tunnel when both tunnels are up
* The secondary tunnel must be used only if the primary tunnel goes down
* In addition, FortiGate should be able to detect a dead tunnel to speed up tunnel failover
Which two key configuration changes are needed on FortiGate to meet the design requirements? (Choose two,)

Correct Answer: BC
Study Guide – IPsec VPN – IPsec configuration – Phase 1 Network.
When Dead Peer Detection (DPD) is enabled, DPD probes are sent to detect a failed tunnel and bring it down before its IPsec SAs expire. This failure detection mechanism is very useful when you have redundant paths to the same destination, and you want to failover to a backup connection when the primary connection fails to keep the connectivity between the sites up.
There are three DPD modes. On demand is the default mode. Study Guide – IPsec VPN – Redundant VPNs.
Add one phase 1 configuration for each tunnel. DPD should be enabled on both ends. Add at least one phase 2 definition for each phase 1.
Add one static route for each path. Use distance or priority to select primary routes over backup routes (routes for the primary VPN must have a lower distance or lower priority than the backup). Alternatively, use dynamic routing.
Configure FW policies for each IPsec interface.

QUESTION 8

Which three options are the remote log storage options you can configure on FortiGate? (Choose three.)

Correct Answer: BCE

QUESTION 9

Which statement is correct regarding the inspection of some of the services available by web applications embedded in third-party websites?

Correct Answer: D

QUESTION 10

What is the limitation of using a URL list and application control on the same firewall policy, in NGFW policy-based mode?

Correct Answer: C
FortiGate Security 7.2 Study Guide (p.317): "You can configure the URL Category within the same security policy; however, adding a URL filter causes application control to scan applications in only the browser-based technology category, for example, Facebook Messenger on the Facebook website."
