- (Exam Topic 3)
An administrator would like to create an SD-WAN default static route for a newly created SD-WAN using the FortiManager GUI. Both port1 and port2 are part of the SD-WAN member interfaces.
Which interface must the administrator select in the static route device drop-down list?

1. A. port2
2. B. virtual-wan-link
3. C. port1
4. D. auto-discovery

Correct Answer: B

- (Exam Topic 3)

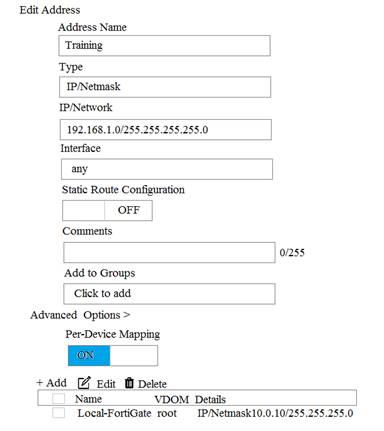

View the following exhibit.

An administrator has created a firewall address object, Training, which is used in the Local-FortiGate policy package. When the install operation is performed, which IP Netmask will be installed on the Local-FortiGate, for the Training firewall address object?

1. A. 10.0.1.0/24
2. B. It will create firewall address group on Local-FortiGate with 192.168.0.1/24 and 10.0.1.0/24 object values
3. C. 192.168.0.1/24
4. D. Local-FortiGate will automatically choose an IP Network based on its network interface settings.

Correct Answer: A

- (Exam Topic 1)
Which two conditions trigger FortiManager to create a new revision history? (Choose two.)

1. A. When configuration revision is reverted to previous revision in the revision history
2. B. When FortiManager installs device-level changes to a managed device
3. C. When FortiManager is auto-updated with configuration changes made directly on a managed device
4. D. When changes to device-level database is made on FortiManager

Correct Answer: BC
Reference:
https://help.fortinet.com/fmgr/50hlp/56/5-6-1/FortiManager_Admin_Guide/1000_Device%20Manager/1500_M

- (Exam Topic 3)
An administrator has added all the devices in a Security Fabric group to FortiManager. How does the administrator identify the root FortiGate?

1. A. By a dollar symbol ($) at the end of the device name
2. B. By an at symbol (@) at the end of the device name
3. C. By a QUESTION NO: mark(?) at the end of the device name
4. D. By an Asterisk (*) at the end of the device name

Correct Answer: D

- (Exam Topic 3)

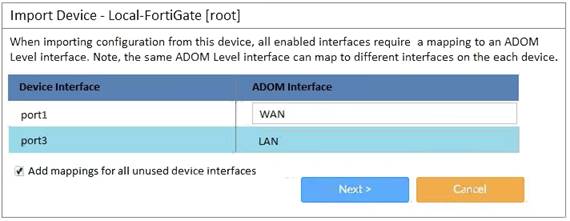

View the following exhibit:

An administrator used the value shown in the exhibit when importing a Local-FortiGate into FortiManager. What name will be used to display the firewall policy for port1?

1. A. port1 on FortiGate and WAN on FortiManager
2. B. port1 on both FortiGate and FortiManager
3. C. WAN zone on FortiGate and WAN zone on FortiManager
4. D. WAN zone on FortiGate and WAN interface on FortiManager

Correct Answer: A
