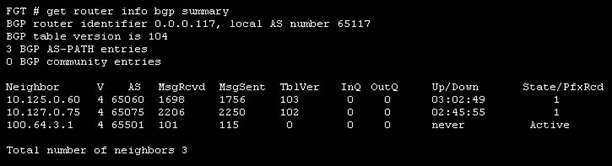

View the exhibit, which contains the output of a BGP debug command, and then answer the question below.

Which of the following statements about the exhibit are true? (Choose two.)

1. A. The local router's BGP state is Established with the 10.125.0.60 peer.
2. B. Since the counters were last reset; the 10.200.3.1 peer has never been down.
3. C. The local router has received a total of three BGP prefixes from all peers.
4. D. The local router has not established a TCP session with 100.64.3.1.

Correct Answer: AD

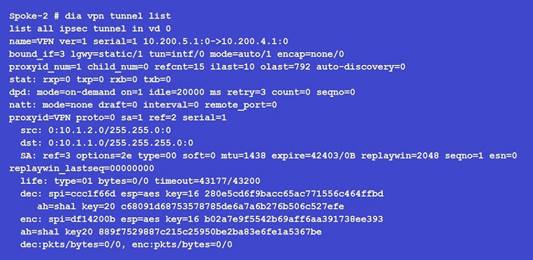

View the exhibit, which contains the partial output of a diagnose command, and then answer the question below.

Based on the output, which of the following statements is correct?

1. A. Anti-reply is enabled.
2. B. DPD is disabled.
3. C. Quick mode selectors are disabled.
4. D. Remote gateway IP is 10.200.5.1.

Correct Answer: A

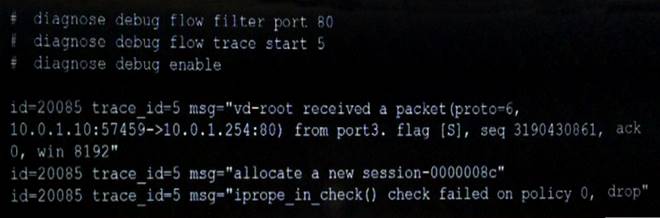

An administrator cannot connect to the GIU of a FortiGate unit with the IP address 10.0.1.254. The administrator runs the debug flow while attempting the connection using HTTP. The output of the debug flow is shown in the exhibit:

Based on the error displayed by the debug flow, which are valid reasons for this problem? (Choose two.)

1. A. HTTP administrative access is disabled in the FortiGate interface with the IP address 10.0.1.254.
2. B. Redirection of HTTP to HTTPS administrative access is disabled.
3. C. HTTP administrative access is configured with a port number different than 80.
4. D. The packet is denied because of reverse path forwarding check.

Correct Answer: AC

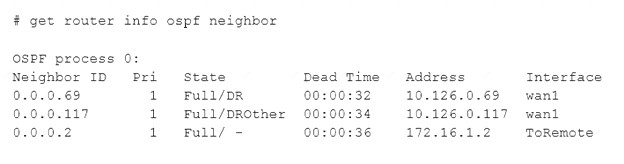

Examine the output of the ‘get router info ospf neighbor’ command shown in the exhibit; then answer the question below.

Which statements are true regarding the output in the exhibit? (Choose two.) Refer to the exhibit, which shows the output of a debug command.
Which statement about the output is true?

1. A. TheOSPF routers with the IDs 0.0.0.69 and 0.0.0.117 are both designated routers for the wa
2. B. l network.
3. C. The OSPF router with the ID 0.0.0.2 is the designated router for the ToRemote network.
4. D. The local FortiGate is the designated router for the wan1 network.
5. E. The interface ToRemote is a point-to-point OSPF network.

Correct Answer: D
https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13685-13.html
