- (Exam Topic 3)
Which protocol must be secured with MD-5 authentication across the MPLS cloud to prevent hackers from introducing bogus routers?

1. A. MP-BGP
2. B. LSP
3. C. RSVP
4. D. LDP

Correct Answer: A

- (Exam Topic 2)
An engineer configured a Cisco router to send reliable and encrypted notifications for any events to the management server. It was noticed that the notification messages are reliable but not encrypted. Which action resolves the issue?

1. A. Configure all devices for SNMPv3 informs with priv.
2. B. Configure all devices for SNMPv3 informs with auth.
3. C. Configure all devices for SNMPv3 traps with auth.
4. D. Configure all devices for SNMPv3 traps with priv.

Correct Answer: A
SNMP notifications can be sent as traps or inform requests. Traps are unreliable because the receiver does not send acknowledgments when this device receives traps.”Send reliable and encrypted notifications for any events” so it is SNMP notifications. For encryption we need to configure “priv”.

- (Exam Topic 3)
Refer to the exhibit.

A network administrator successfully logs in to a switch using SSH from a (RADIUS server When the network administrator uses a console port to access the switch the RADIUS server returns shell:priv-lvl=15’’ and the switch asks to enter the enable command the command is entered, it gets rejected. Which command set is used to troubleshoot and reserve this issue?

1. A. line con 0aaa authorization console authorization exec!line vty 0 4 transport input ssh
2. B. line con 0aaa authorization console!line vty 0 4 authorization exec
3. C. line con 0aaa authorization console priv15!line vty 0 4 authorization exec
4. D. line con 0aaa authorization console authorization priv15!line vty 0 4 transport input ssh

Correct Answer: A

- (Exam Topic 1)

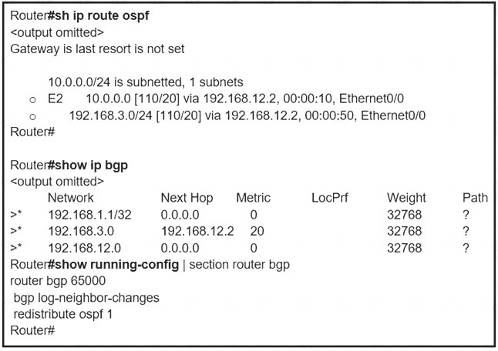

Refer to the exhibit.

An engineer is trying to redistribute OSPF to BGP, but not all of the routes are redistributed. What is the reason for this issue?

1. A. By default, only internal routes and external type 1 routes are redistributed into BGP
2. B. Only classful networks are redistributed from OSPF to BGP
3. C. BGP convergence is slow, so the route will eventually be present in the BGP table
4. D. By default, only internal OSPF routes are redistributed into BGP

Correct Answer: D
If you configure the redistribution of OSPF into BGP without keywords, only OSPF intra-area and inter-area routes are redistributed into BGP, by default.
You can redistribute both internal and external (type-1 & type-2) OSPF routes via this command: Router(config-router)#redistribute ospf 1 match internal external 1 external 2
Reference:
https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/5242-bgp-ospf-redis.html

- (Exam Topic 1)

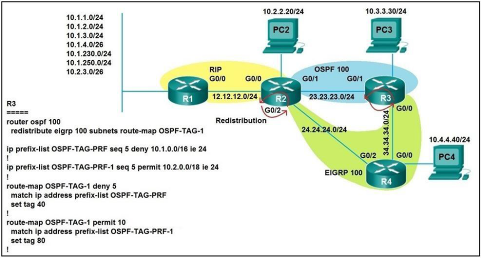

Refer to the exhibit.

Which subnet is redistributed from EIGRP to OSPF routing protocols?

1. A. 10.2.2.0/24
2. B. 10.1.4.0/26
3. C. 10.1.2.0/24
4. D. 10.2.3.0/26

Correct Answer: A
