- (Exam Topic 3)
Refer to the exhibit.

A NOC team receives a ticket that data traffic from RA to RF is not forwarded when the link between the RC-RE path goes down. All routers learn loopback IP through the IGP protocol. Which configuration resolves?

1. A. RD(config)#router bgp B5201RD(config-router)# neighbor 10.10.10.2 update-source loopback 0
2. B. RD(config-router)# neighbor bgp 65101RB(config-router)# neighbor 10.10.10.3 ebgp-multihop 3
3. C. RB(config)# router bgp 65101RB(config)#neighbor 10.10.10.3 update-source loopback 0
4. D. RD(config)# router bgp 65201RDI(config-router)# neighbor 10.10.10.2 ebgp-multihop 3

Correct Answer: B

- (Exam Topic 1)

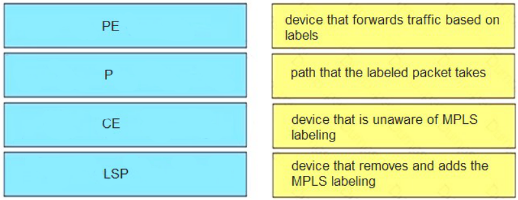

Drag and drop the MPLS terms from the left onto the correct definitions on the right.

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 1)
Refer to the exhibit.

An administrator noticed that after a change was made on R1, the timestamps on the system logs did not match the clock. What is the reason for this error?

1. A. An authentication error with the NTP server results in an incorrect timestamp.
2. B. The keyword localtime is not defined on the timestamp service command.
3. C. The NTP server is in a different time zone.
4. D. The system clock is set incorrectly to summer-time hours.

Correct Answer: B

- (Exam Topic 2)
Refer to the exhibit.

A network administrator is discovering a Cisco Catalyst 9300 and a Cisco WLC 3504 in Cisco DNA Center. The Catalyst 9300 is added successfully However the WLC is showing [ error "uncontactable" when the administrator tries to add it in Cisco DNA Center. Which action discovers WLC in Cisco DNA Center successfully?

1. A. Copy the .cert file from the Cisco DNA Center on the USB and upload it to the WLC 3504.
2. B. Delete the WLC 3504 from Cisco DNA Center and add it to Cisco DNA Center again.
3. C. Add the WLC 3504 under the hierarchy of the Catalyst 9300 connected devices.
4. D. Copy the .pern file from the Cisco DNA Center on the USB and upload it to the WLC 3504.

Correct Answer: D
https://www.cisco.com/c/en/us/support/docs/wireless/4400-series-wireless-lan-controllers/109597-csr-chained-c

- (Exam Topic 1)
Drag and drop the MPLS VPN concepts from the left onto the correct descriptions on the right.

Solution:
Reference:
https://www.rogerperkin.co.uk/featured/route-distinguisher-vs-route-target/

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A
