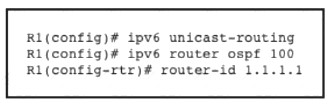

Refer to the exhibit.

An engineer is configuring router R1 for OSPFv3 as shown. Which additional configuration must be performed so that the three active interfaces on the router will advertise routes and participate in OSPF IPv6 processes?

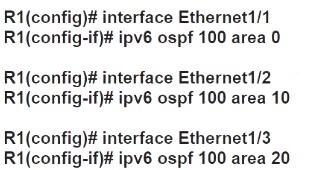

A)

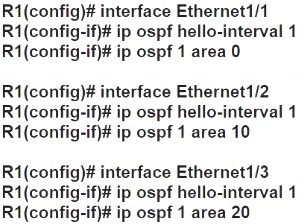

B)

C)

1. A.

Correct Answer: A

A network administrator must monitor network usage to provide optimal performance to the network end users when the network is under heavy load. The administrator asked the engineer to install a new server to receive SNMP traps at destination 192.168.1.2. Which configuration must the engineer apply so that all traps are sent to the new server?

1. A. snmp-server enable traps entity snmp-server host 192.168.1.2 public
2. B. snmp-server enable traps bgpsnmp-server host 192.168.1.2 public
3. C. snmp-server enable traps isdnsnmp-server host 192.168.1.2 public
4. D. snmp-server enable trapssnmp-server host 192.168.1.2 public

Correct Answer: D

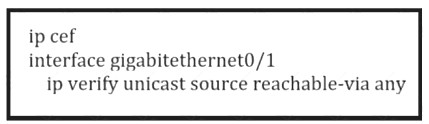

Refer to the exhibit:

Router 1 was experiencing a DDoS attack that was traced to interface gjgabitethernet0/1. Which statement about this configuration is true?

1. A. Router 1 drops all traffic that ingresses interface gigabitethernet0/1 that has a FIB entry that exits a different interface
2. B. Router 1 accepts source addresses on interface gigabitethemet0/1 that are private addresses
3. C. Router 1 accepts all traffic that ingresses and egresses interface gigabitethernet0/1
4. D. Router 1 accepts source addresses that have a match in the FIB that indicates it is reachable through a real interface

Correct Answer: D

Refer to the exhibit.

Routers P4 and P5 receive the 0.0.0.0/0 route from the ISP via eBGP peering. P4 is the primary Internet gateway router, and P5 is its backup. P5 is already advertising a default route into the OSPF domain. Which configuration must be applied to P4 so that it advertises a default route into OSPF and becomes the primary Internet gateway for the network?

1. A. configure terminalrouter ospfv3 100address-family ipv4 unicastdefault-information originate metric 40 metric-type 2 end
2. B. configure terminal router ospfv3 100address-family ipv4 unicastdefault-information originate metric 40 metric-type 1 end
3. C. configure terminal router ospfv3 100address-family ipv4 unicastredistribute bgp 65500 metric 40 metric-type 1 end
4. D. configure terminal router ospfv3 100address-family ipv4 unicastdefault-information originate always metric 40 metric-type 1 end

Correct Answer: A

An ISP Is Implementing end-to-end fault monitoring for a customer based on the IEEE 802.3ah standard. The solution must detect when 15 or more corrupted Ethernet packets arrive within 10 ms and stop propagating traffic through the ISP backbone network or to the customer side. Which configuration must the ISP engineer apply?

1. A. ethernet oam link-monitoring enableethernet oam link-monitor crc-errors ingress time-window 10ethernet oam link-monitor crc-errors ingress threshold high 15 ethernet oam link-monitor crc-errors egress time-window 10 ethernet oam link-monitor crc-errors egress threshold high 15 ethernet oam link-monitor high-threshold action shutdown-interface
2. B. ethernet oam link-monitoringethernet oam link-monitor receive-crc window 15 ethernet oam link-monitor receive-crc threshold high 10ethernet oam link-monitor high-threshold action disable-interface
3. C. ethernet oamethernet oam link-monitor receive-crc window 10 ethernet oam link-monitor receive-crc threshold high 15 ethernet oam link-monitor transmit-crc window 10 ethernet oam link-monitor transmit-crc threshold high 15ethernet oam link-monitor high-threshold action errordisable-interface
4. D. ethernet oam link-monitoring global enableethernet oam link-monitor receive crc-errors period 15 ethernet oam link-monitor receive crc-errors limit 15 ethernet oam link-monitor transmit crc-errors period 10 ethernet oam link-monitor transmit crc-errors limit 15 ethernet oam link-monitor limit action error-disable interface

Correct Answer: C
