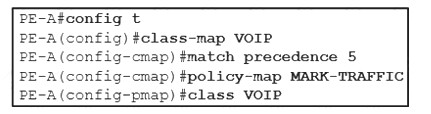

Refer to the exhibit:

Which command is used to complete this configuration for QoS class-based marking?

1. A. PE-A(config-pmap-c)#set dscp ef
2. B. PE-A(config-pmap-c)#fair-queue
3. C. PE-A(config-pmap-c)#random-detect
4. D. PE-A(config -pmap-c)#priority

Correct Answer: A

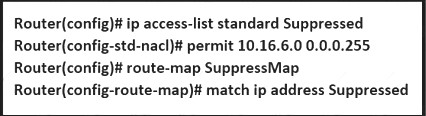

Refer to the exhibit.

An engineer is implementing BGP selective prefix suppression. The router must advertise only 10.16.4.0/24,10.16.5.0/24. and summarized route 10.16.0.0/21. and suppress 10.16.6.0/24. Which configuration must the engineer apply to the router?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: B

Refer to the exhibit.

An engineer is implementing Auto-RP and reviewing the configuration of the PE-A. Which configuration permits Auto-RP messages to be forwarded over this interface?

1. A. PE-A(config-if)#ip pim sparse-mode
2. B. PE-A(config-if)#no ip pim bsr-border
3. C. PE-A(config-if)#ip igmp version 3
4. D. PE-A(config-if)#ip pim sparse-dense-mode

Correct Answer: D

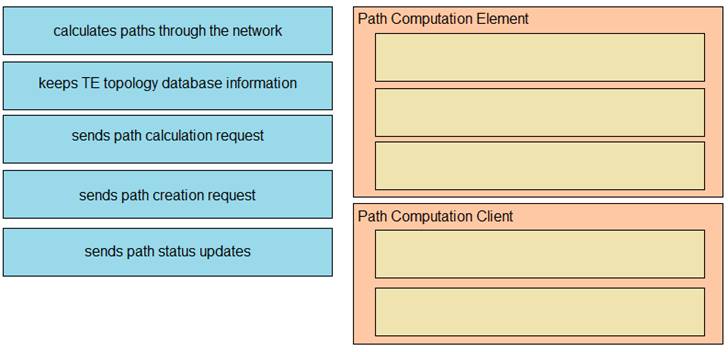

Drag and drop the functions from the left onto the Path Computation Element Protocol roles on the right.

Solution:
PCE – 1,2,5
PCC- 3,4

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

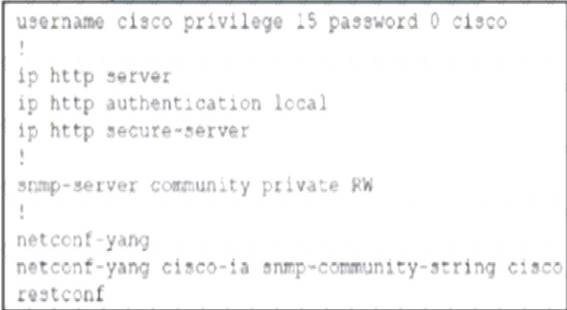

Refer to Exhibit.

A network engineer is trying to retrieve SNMP MIBs with RESTCONF on the Cisco switch but fails.
End-to-end routing is in place. Which configuration must the engineer implement on the switch to complete?

1. A. netconf-yang cisco-ia snamp-community -string Public
2. B. snmp-server community cisco RW
3. C. snmp-server community public RO
4. D. netconf-yang cisco-Ia snmp-community-string Private

Correct Answer: B
